API Spec 5L

Standard	Type of pipe	Class	Grade	C max	Si max	Mn max	P max	S max	V max	Nb max	Ti max
API SPEC 5L	SMLS	PLS1	L245B L290X42 L320X46 L360X52 L390X56 L415X60 L450X65 L485X70 L245NBN	0.28 0.28 0.28 0.28 0.28 0.28 0.28 0.28 0.24	0.4	1.20 1.30 1.40 1.40 1.40 1.40 1.40 1.40 1.20	0.030 0.030 0.030 0.030 0.030 0.030 0.030 0.030 0.015	0.030 0.030 0.030 0.030 0.030 0.030 0.030 0.030 0.015	…	…	0.04
		PLS2	L290NX42N	0.24	0.4	1.2	0.025	0.015	0.06	0.05	0.04
			L320NX46N	0.24	0.4	1.4	0.025	0.015	0.07	0.05	0.04
			L360NX52N	0.24	0.45	1.4	0.025	0.015	0.1	0.05	0.04
			L390NX56N	0.24	0.45	1.4	0.025	0.015	0.1	0.05	0.04
			L415NX60N	0.24	0.45	1.4	0.025	0.015	0.1	0.05	0.04
	WELD	PLS1	L245B	0.26	-	1.2	-	0.03	0.03	-	-
			L290X42	0.26	-	1.3	-	0.03	0.03	-	-
			L320X46	0.26	-	1.4	-	0.03	0.03		-
			L360X52	0.26	-	1.4	-	0.03	0.03	-	-
			L390X56	0.26	-	1.4	-	0.03	0.03	-	-
			L415X60	0.26	-	1.4	-	0.03	0.03	-	-
			L450X65	0.26	-	1.45	-	0.03	0.03	-	-
			L485X70	0.26	-	1.65	-	0.03	0.03	-	-
		PLS2	L245M BM	0.22	0.45	1.2	0.025	0.015	0.05	0.05	0.04
			L290MX42M	0.22	0.45	1.3	0.025	0.015	0.05	0.05	0.04
			L320MX46M	0.22	0.45	1.3	0.025	0.015	0.05	0.05	0.04

API SPEC 5L Steel Pipe Mechanical Properties:

Standard	Class	Grade		Yield strength not less than(MPa)	Tensile strength(MPa)	Elongation(%)	Y.S/T.S
API SPEC 5L ISO3183	PLS1	L245B	min	245	415	b	-
		L290X42	Min	290	415	b	-
		L320X46	Min	320	485	b	-
		L360X52	Min	360	460	b	-
		L390X56	Min	390	490	b	-
		L415X60	Min	415	520	b	-
		L450X60	Min	450	535	b	-
		L485X70	Min	485	570	b	-
	PLS2	L245N BN	min	245	415	b	-
		L245M BM	Max	450	760	b	0.93
		L290NX42N	Min	290	415	b	-
		L290MX42M	Max	495	760	b	0.93
		L320NX46N	min	320	435	b	-
		L320MX46M	Max	525	760	b	0.93
		L360NX52N	Min	360	460	b	-
		L369MX52M	Max	580	760	b	0.93
		L390NX56N	Min	390	490	b	-
		L390MX56M	Max	545	760	b	0.93
		L415NX60N	Min	415	520	b	-
		L415MX60M	max	565	760	b	0.93
		L450MX65M	Min	450	585	b	-
			Max	600	760	b	0.93
		L485X70M	Min	485	570	b	-
			max	685	760	b	0.93

Toughness:

Standard	Grade	Transverse minimum impact of pipe body					Transverse minimum impact of weld(j)
		(j)
		D-508	508<D=762mm	762mm<d=914mm	914mm<D=1219mm	1219mm<D=1422mm	D<1422mm	D=1422mm
API SPEC 5L	=L415×60	27(20)	27(20)	40(30)	40(30)	40(30)	27(20)	40(30)
	>L415×60	27(20)	27(20)	40(30)	40(30)	54(40)	27(20)	40(30)
	=L450×65
	=L450×65	27(20)	27(20)	40(30)	40(30)	54(40)	27(20)	40(30)
	=L485×7040(30)
	>L485×70	40(30)	40(30)	40(30)	40(30)	54(40)	27(20)	40(30)
	=L555×80

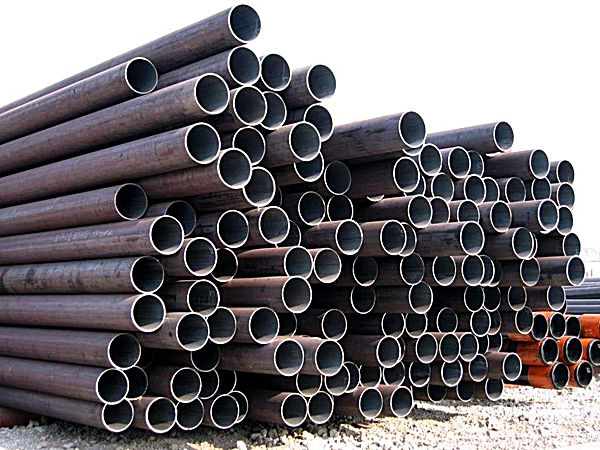

API SPEC 5L steel pipe is made for pipeline transportation systems in the oil and natural gas plants.  API 5L has its special characteristic for conveying, water, gas and oil. This kind of oil pipe size range can be made per customer’s need, so the only limit is manufacturer’s capabilities. It is strictly manufactured following ISO 3183 standards, which is specially made for the pipeline systems at material, equipment, off shore gas industries.
