ASTM-A519

ASTM A519 Tube Chemical Composition(%):

The Chemical Composition for Alloy Steel
Grade	Chemical composition(%)
	C	Mn	P max	S max	Si	Ni	Cr	Mo
4118	0.18-0.23	0.70-0.90	0.04	0.04	0.15-0.35	-	0.40-0.60	0.08-0.15
4130	0.28-0.33	0.40-0.60	0.04	0.04	0.15-0.35	-	0.80-1.10	0.15-0.25
4135	0.32-0.39	0.65-0.95	0.04	0.04	0.15-0.35	-	0.80-1.10	0.15-0.25
4140	0.38-0.43	0.75-1.00	0.04	0.04	0.15-0.35	-	0.80-1.10	0.15-0.25

ASTM A519 Tube Mechanical Properties:

Grade	State	Tensile Strength		Yield Strength		Elongation	Hardness
		Ksi	Mpa	Ksi	Mpa	%	(HB)
1020	HR	50	345	32	221	25	55
	CW	70	483	60	414	5	75
	SR	65	448	50	345	10	72
	A	48	331	28	193	30	50
	N	55	379	34	234	22	60
1045	HR	75	517	45	310	15	80
	CW	90	621	80	552	5	90
	SR	80	552	70	483	8	85
	A	65	448	35	241	20	72
	N	75	517	48	331	15	80
4130	HR	90	621	70	483	20	89

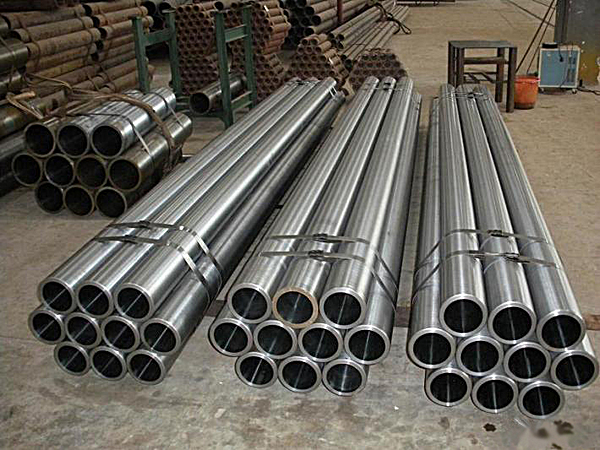

ASTM A519 tube is a kind of carbon and alloy steel tube designed for mechanical purposes. Hot finished and cold finished are 2 delivery states. Seamless tube made in hot rolling way without welding process and shall be made into other shapes in the cold finish process. It is mainly used for rollers, heavily machined parts and sleeves.
